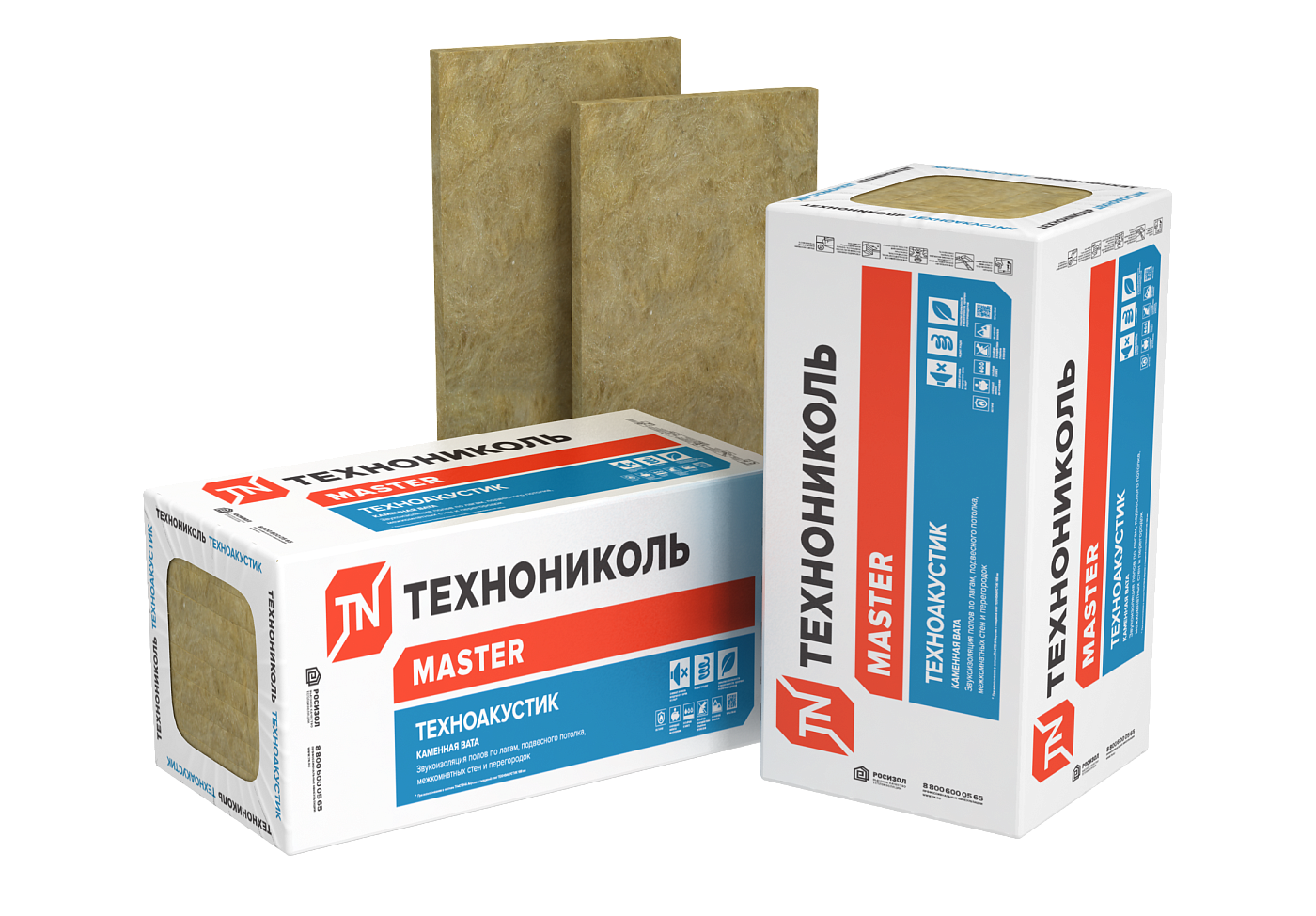

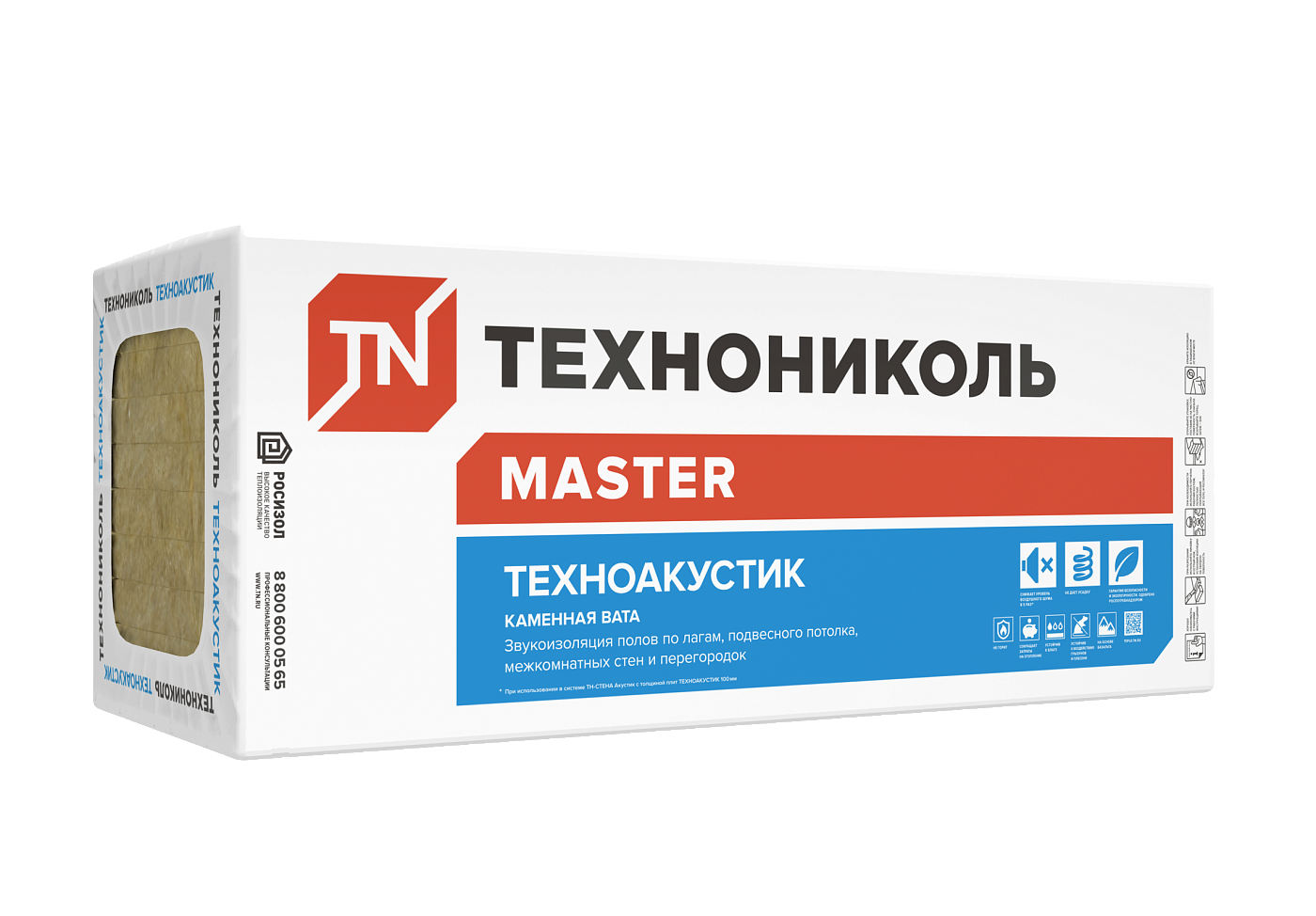

TECHNOAKUSTIK 1200 * 600 * 50 mm (5.76 sq / m)
- category: Stone Wool / Sound insulation
- Brands: TECHNONICOL
TECHNOAKUSTIC is a non-combustible, hydrophobized board designed for heat and sound insulation. Crafted from mineral wool derived from basalt group ro... See more
TECHNOAKUSTIC is a non-combustible, hydrophobized board designed for heat and sound insulation. Crafted from mineral wool derived from basalt group rocks, its unique fiber arrangement imparts exceptional sound-absorbing qualities. This acoustic mineral wool boasts robust physical and mechanical properties, guaranteeing dependable performance in vertical structures.
See less
|
Parameter name |
Measurement unit |
Criteria |
Value |
Test Methodology |
|
Thermal conductivity, λ10 |
W/m·°K |
Not above |
0,035 |
State All-Union standard 7076-99, State All-Union standard 31925-2011 (EN 12667:2001), State All-Union standard31924-2011 (EN 12939:2000) |
|
Thermal conductivity, λD |
W/m·°K |
Not above |
0,036 |
State All-Union standard 32314-2011 (EN 13162:2008) |
|
Thermal conductivity, λА |
W/m·°K |
Not above |
0,038 |
State All-Union standard 7076-99, СП 23-101-2004 |
|
Thermal conductivity, λБ |
W/m·°K |
Not above |
0,039 |
State All-Union standard 7076-99, СП 23-101-2004 |
|
Compressive strength at 10 % of deformation |
kPa |
Not above |
0,5 |
State All-Union standard EN 826-2011 |
|
Organic matter contents |
% |
Not above |
2,5 |
State All-Union standard 17177-94 |
|
Short-run water absorption at partial immersion |
kg/m2 |
Not above |
1 |
State All-Union standardEN 1609-2011 |
|
Water absorption at partial immersion of samples during fixed long-time |
kg/m2 |
Not above |
3 |
State All-Union standard EN 12087-2011 |
|
flammability |
degree |
- |
non-flammable |
State All-Union standard 30244-94 |
|
Плотность |
kg/m3 |
- |
41 (±4) |
State All-Union standard 17177-94 |
|
Parameter name |
Measurement unit |
Criteria |
Value |
|
length |
mm |
1200 (1000)* |
State All-Union standard EN 822-2011 |
|
Width |
mm |
50; 75; 100 |
State All-Union standard EN 822-2011 |
|
Thickness |
mm |
20-50* |
State All-Union standard EN 823-2011 |
|
Grade by thickness |
Т |
Т4 |
State All-Union standard 32314-2011 (EN 13162:2008) |
- Diminishes five-fold airborne noise level when used within the system “TH-Stena Acoustic” with 100 mm thick TECHNOACOUSTIC slabs.
- Doesn’t shrink.
- Guarantees safety and environmental performance.
- Slabs are used in industrial and civil construction as:a thermal and sound insulation layer not being under load: light-weight covering surfaces, partition walls, floors, crawl space slabs, attics and lofts, garret flooring;
- A sound insulation layer in suspended ceilings.
- Storage:
Slabs must be stored into containers or stacked on the pallets separately by trade mark and size. Polyethylene heat-shrink film is used for packaging. The material must be protected from atmospheric precipitation during whole period of storage.
